    DS9092 TM01SS 9092L Probe Zinc Alloy Ibutton And Smart Cards

    Ask Lasest Price
    Brand Name : soa
    Model Number : TM01ss
    Certification : ROSH
    Price : USD: 0.9
    Payment Terms : T/T
    Supply Ability : 50000
    Delivery Time : 15-25days
    • Product Details
    • Company Profile

    DS9092 TM01SS 9092L Probe Zinc Alloy Ibutton And Smart Cards

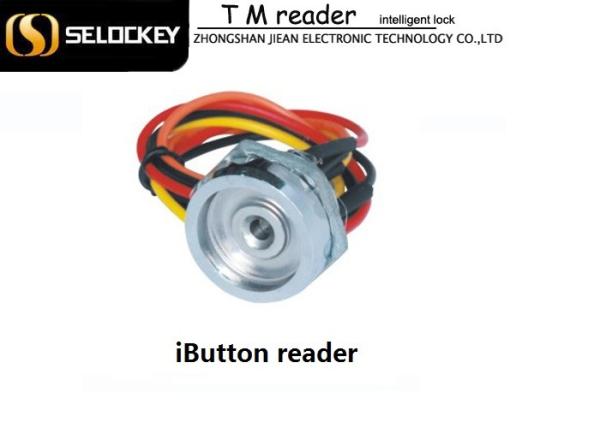

    IButton TM Reader TM01SS 9092L Probe


    FEATURES
    Solid metal read/write panel-mount probe for the Ddallas iButton family products.
    Integrated green LED for user-feedback signaling or no LED model.
    Probe guides the entry of the Dallas iButton family products.
    Dallas iButton slides over the surface to self-clean contacts.
    Accessible shallow probe cavity simplifies removal of debris such as mud.
    Probe suited for panels of up to 3mm thickness.
    Contacts made from solid 304 stainless steel with blue nylon insulation.
    Metric design, pre-wired for easy installation.
    TM01SS 9092L with LED probe,panel mount
    DESCRIPTION
    The TM01SS-9092L Dallas iButton Probe with LED provides the electrical contact necessary for
    the transfer of data to and from the Dallas DS19xx family of iButtons. The round probe shape
    provides a self-aligning interface that readily matches the circular rim of the Dallas iButton’s
    MicroCan package. The solid metal contacts resist wear and are easy to keep clean.
    The TM01SS-DS9092L has no moving parts, making it a rugged interface for harsh environments.
    The round center contact of the TM01SS-DS9092L houses the LED that is rated for maximum 20
    mA DC at 2.7V typically.

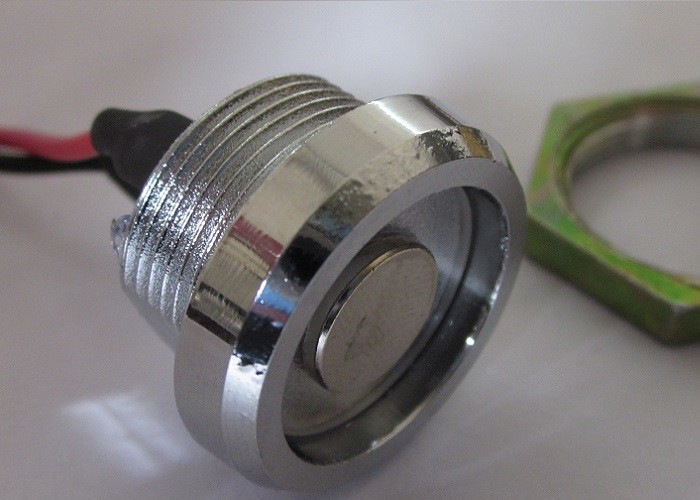

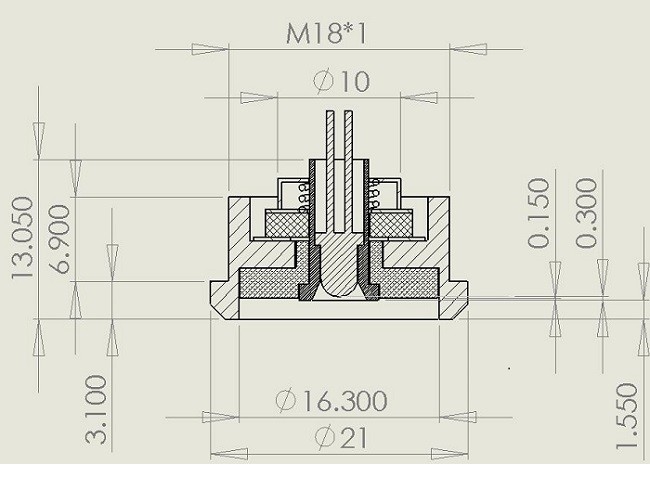

    The probe comes with a brass M18*1 nut for panel mounting. Since the body of the probe also
    forms the ground contact, the panel should be of non-conducting material to avoid ground loops.
    The 30-cm cable with connector is provided for easy connection to the system microcontroller.
    The mating connector is a Molex Part Number 22-04-1041.
